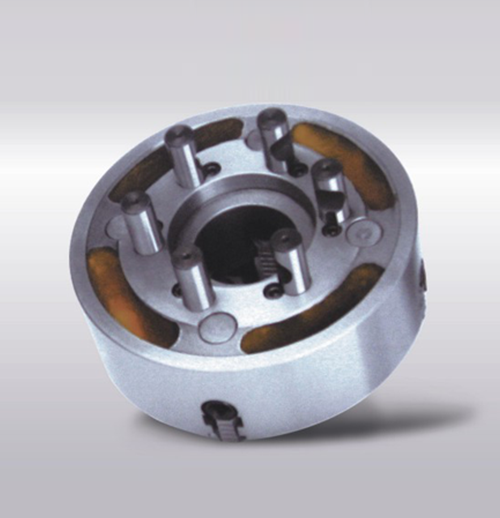

K72系列四爪卡盘D型
适用范围K72系列四爪单动卡盘采用短圆柱型和短圆锥 型。短圆锥型按其与机床主轴端部连接式分为 A型(穿通螺钉连接)、C型(拔盘、螺栓锁紧连接 )、D型(拉杆、凸轮锁紧连接)三种型式。
联系我们
产品详情“更多特殊定制需求,请联系我们”

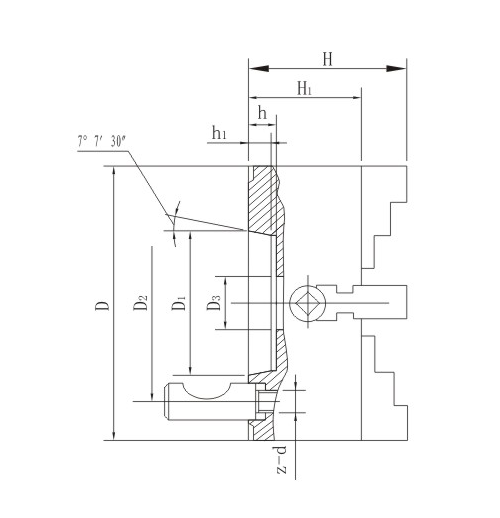

规格/型式 | D1 | D2 | D3 | H | h1 | h | h2 | z-d |
K/7200/D4 | 63.513 | 82.6 | 56 | 107 | 75 | 13 | 10 | 3-M10×1 |
K72250/D4 | 63.513 | 82.6 | 61 | 120 | 80 | - | 10 | 3-M10×1 |
K72320/D4 | 63.513 | 82.6 | 61 | 138 | 90 | - | 10 | 3-M10×1 |
K72250/D6 | 106.375 | 133.4 | 75 | 120 | 80 | 16 | 13 | 6-M16×1.5 |
K72320/D6 | 106.375 | 133.4 | 95 | 138 | 90 | 16 | 13 | 6-M16×1.5 |
K72400/D6 | 106.375 | 133.4 | 95 | 143 | 95 | 16 | 13 | 6-M16×1.5 |
K72500/D6 | 106.375 | 133.4 | 103 | 160 | 105 | - | 13 | 6-M16×1.5 |
K72320/D8 | 139.719 | 171.4 | 95 | 138 | 90 | 18 | 14 | 6-M20×1.5 |
K72400/D8 | 139.719 | 171.4 | 125 | 143 | 95 | 18 | 14 | 6-M20×1.5 |
K72500/D8 | 139.719 | 171.4 | 136 | 160 | 105 | - | 14 | 6-M20×1.5 |
K72400/D11 | 196.869 | 235 | 125 | 143 | 95 | 20 | 16 | 6-M22×1.5 |
K72500/D11 | 196.869 | 235 | 160 | 160 | 105 | 20 | 16 | 6-M22×1.5 |
K72630/D11 | 196.869 | 235 | 180 | 180 | 115 | 20 | 16 | 6-M22×1.5 |
K72500/D15 | 285.775 | 330.2 | 160 | 160 | 105 | 21 | 17 | 6-M24×1.5 |
K72630/D15 | 285.775 | 330.2 | 180 | 180 | 115 | 21 | 17 | 6-M24×1.5 |
