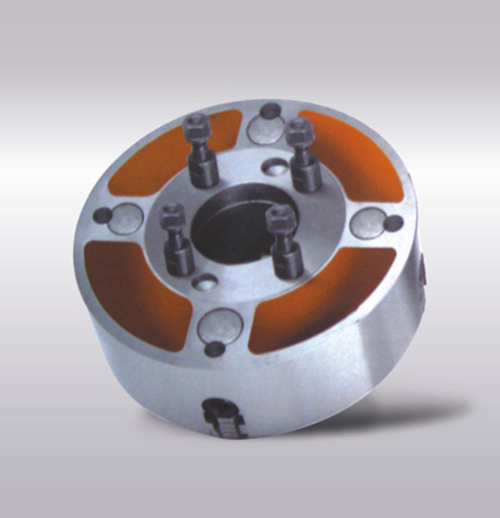

K72四爪单动卡盘C型

适用范围

K72系列四爪单动卡盘采用短圆柱型和短圆锥型。短圆锥型按其与机床主轴端部连接式分为A型(穿通螺钉连接)、C型(拨盘、螺栓锁紧连接)、D型(拉杆、凸轮锁紧连接)三种型式。

联系我们

产品详情“更多特殊定制需求，请联系我们”

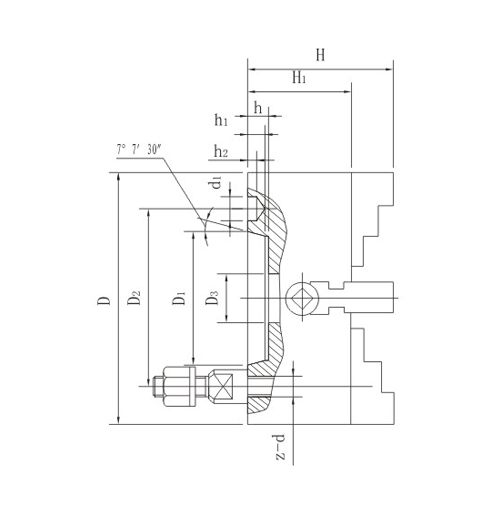

SEPC./MODEL	D1	D2	D3	H	H1	h	h1	h2	d1	z-d
K72160/C4	63.513	82.6	45	93	65	13	10	6.5	14.7	3-M10
K72200/C4	63.513	82.6	56	107	75	13	10	6.5	14.7	3-M10
K72250/C4	63.513	82.6	61	120	80	-	10	6.5	14.7	3-M10
K72320/C4	63.513	82.6	61	138	90	-	10	6.5	14.7	3-M10
K72200/C6	106.375	133.4	56	107	75	16	13	6.5	19.5	4-M12
K72250/C6	106.375	133.4	75	120	80	16	13	6.5	19.5	4-M12
K72320/C6	106.375	133.4	95	138	90	16	13	6.5	19.5	4-M12
K72400/C6	106. 375	133.4	95	143	95	16	13	6.5	19.5	4-M12
K72500/C6	106.375	133.4	103	160	105	-	13	6.5	19.5	4-M12
K72520/C8	139.719	171.4	75	120	80	18	14	8	24.2	4-M16
K72320/C8	139.719	171.4	95	138	90	18	14	8	24.2	4-M16
K72400/C8	139.719	171.4	125	143	95	18	14	8	24.2	4-M16
K72500/C8	139.719	171.4	136	160	105	-	14	8	24.2	4-M16
K72320/C11	196.869	235	95	138	90	20	16	10	29.4	6-M20
K72400/C11	196. 869	235	125	143	95	20	16	10	29.4	6-M20
K72500/C11	196.869	235	160	160	105	20	16	10	29.4	6-M20
K72500/C15	285.775	330.2	160	160	105	21	17	10	35.7	6-M20
