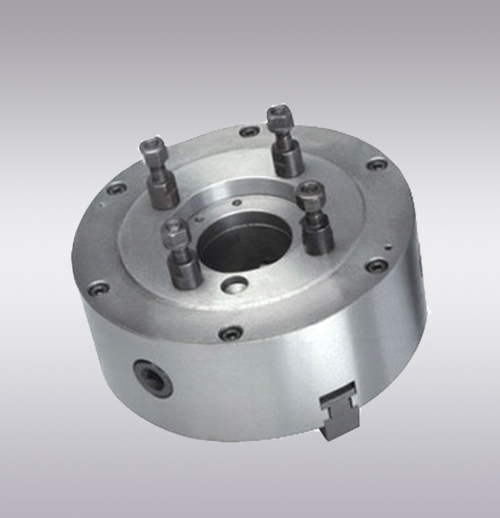

三爪自定心卡盘C型
适用范围K11系列短锥三爪自定心卡盘采用短圆锥孔定位，定位精度 高，拆装快捷、方便、可靠。按其与机床主轴端部连接型式 分为A型(穿通螺钉连接)、C型(拨盘、螺栓锁紧连接)、D型 (拉杆、凸轮锁紧连接)三种型式。
联系我们
产品详情“更多特殊定制需求，请联系我们”

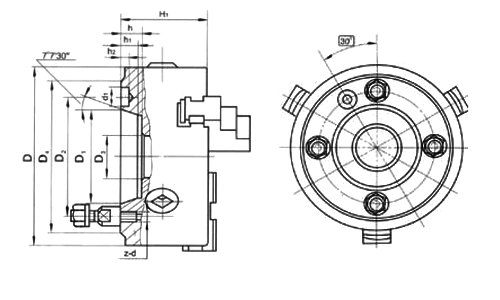

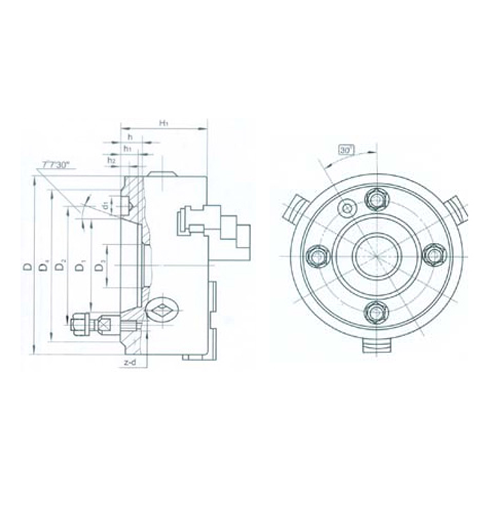

| 规格/型式 | D | D1 | D2 | D3 | D4 | H1 | h | h1 | h2 | d1 | z-d |
| K11125/C3 | 125 | 53.975 | 75 | 25 | 102 | 63 | 13 | 10 | - | - | 3-M10 |
| K11125/C4 | 125 | 63.513 | 82.6 | 25 | 112 | 63 | 13 | 10 | 6.5 | 14.7 | 3-M10 |
| K11160/C3、K11160A/C3 | 160 | 53.975 | 75 | 40 | 102 | 78 | 13 | 10 | - | - | 3-M10 |
| K11160/C4、K11160A/C4 | 160 | 63.513 | 82.6 | 40 | 112 | 78 | 13 | 10 | 6.5 | 14.7 | 3-M10 |
| K11160/C5、K11160A/C5 | 160 | 82.563 | 104.8 | 40 | 135 | 78 | 15 | 12 | 6.5 | 16.3 | 4-M10 |
| K11200/C4、K11200A/C4 | 200 | 63.513 | 82.6 | 60 | 112 | 88 | - | 10 | 6.5 | 14.7 | 3-M10 |
| K11200/C5、K11200A/C5 | 200 | 82.563 | 104.8 | 50 | 135 | 88 | 15 | 12 | 6.5 | 16.3 | 4-M10 |
| K11200/C6、K11200A/C6 | 200 | 106.375 | 133.4 | 60 | 170 | 88 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K11250/C5、K11250A/C5 | 250 | 82.563 | 104.8 | 79 | 135 | 95 | - | 12 | 6.5 | 16.3 | 4-M10 |
| K11250/C6、K11250A/C6 | 250 | 106.375 | 133.4 | 70 | 170 | 95 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K11250/C8、K11250A/C8 | 250 | 139.719 | 171.4 | 80 | 220 | 95 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K11315/C6、K11315A/C6 | 315 | 106.375 | 133.4 | 100 | 170 | 112 | 16 | 13 | 10 | 19.5 | 4-M12 |
| K11315/C8、K11315A/C8 | 315 | 139.719 | 171.4 | 100 | 220 | 112 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K11315/C11、K11315A/C11 | 315 | 196.869 | 235 | 100 | 290 | 112 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K11320/C6、K11320A/C6 | 320 | 106.375 | 133.4 | 100 | 170 | 112 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K11320/C8、K11320A/C8 | 320 | 139.719 | 171.4 | 100 | 220 | 112 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K11320/C11、K11320A/C11 | 320 | 196.869 | 235 | 100 | 290 | 112 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K11325/C6、K11325A/C6 | 325 | 106.375 | 133.4 | 100 | 170 | 112 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K11325/C8、K11325A/C8 | 325 | 139.719 | 171.4 | 100 | 220 | 112 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K11325/C11、K11325A/C11 | 325 | 196.869 | 235 | 100 | 290 | 112 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K11380/C8、K11380A/C8 | 380 | 139.719 | 171.4 | 130 | 220 | 122 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K11380/C11、K11380A/C11 | 380 | 196.869 | 235 | 130 | 290 | 122 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K11400/C8、K11400A/C8 | 400 | 139.719 | 171.4 | 130 | 220 | 122 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K11400/C11、K11400A/C11 | 400 | 196.869 | 235 | 130 | 290 | 122 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K11500/C11、K11500A/C11 | 500 | 196.869 | 235 | 190 | 290 | 135 | - | 16 | 10 | 29.4 | 6-M20 |
| K11500/C15、K11500A/C15 | 500 | 258.775 | 330.2 | 200 | 400 | 135 | 21 | 17 | 10 | 35.7 | 6-M24 |
| K11630/C11、K11630A/C11 | 630 | 196.869 | 235 | 190 | 290 | 150 | - | 16 | 10 | 29.4 | 6-M20 |
| K11630/C15、K11630A/C15 | 630 | 285.775 | 330.2 | 260 | 400 | 150 | 21 | 17 | 10 | 35.7 | 6-M24 |
