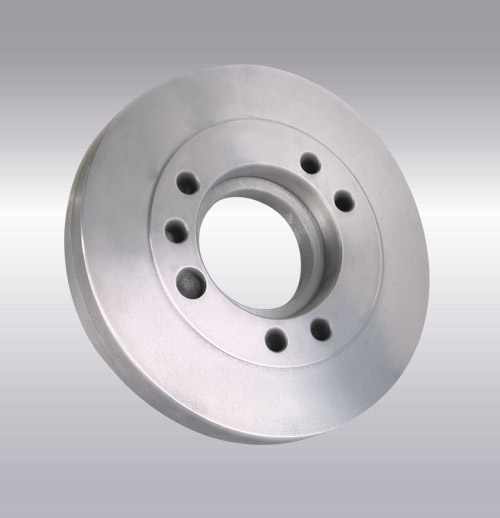

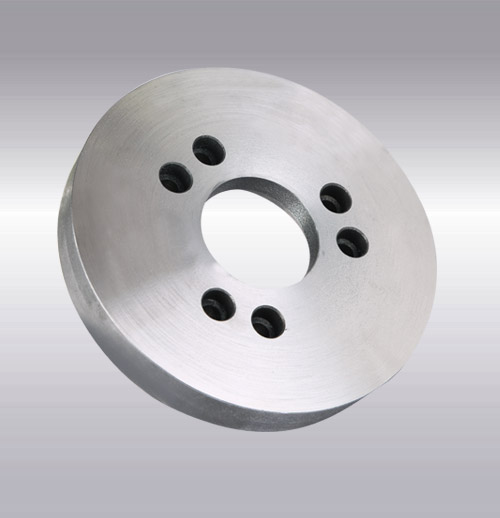

FLANGE PLATE FOR MACHINE TOOL A1-TYPE
ExplainOur company provide all kinds of joint flanges, you can consult our sales for any needs.
CONTACT
Product InformationAccording to customer's requirements, we can provide customized steel body chuck.

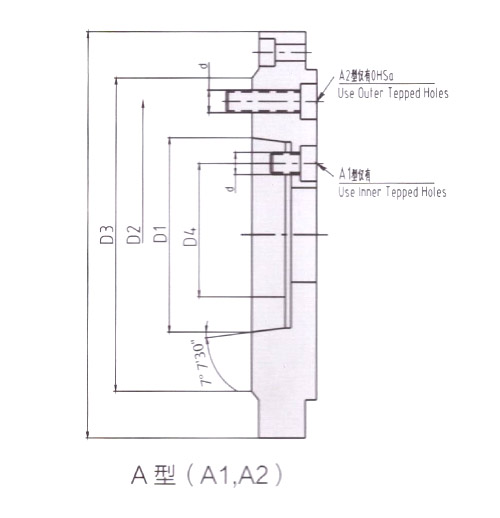

Flange type | D | D1 | D2 | D3 | D4 | d |
FL200A1-6 | 200 | 106.375 | 133.4 | 165 | 82.6 | M12 |
FL250A1-6 | 250 | 106.375 | 133.4 | 165 | 82.6 | M12 |
FL250A1-8 | 250 | 139.719 | 171.4 | 210 | 111.1 | M16 |
FL320A1-6 | 250 | 106.375 | 133.4 | 165 | 82.6 | M12 |
FL320A1-8 | 320 | 139.719 | 171.4 | 210 | 111.1 | M16 |
FL320A1-11 | 320 | 196.869 | 235 | 280 | 165.1 | M20 |
FL400A1-8 | 400 | 139.719 | 171.4 | 210 | 111.1 | M16 |
FL400A1-11 | 400 | 196.869 | 235 | 280 | 165.1 | M20 |
FL500A1-11 | 500 | 196.869 | 235 | 280 | 165.1 | M20 |
FL630A1-11 | 630 | 196.869 | 235 | 280 | 165.1 | M20 |
FL630A1-15 | 630 | 285.775 | 330.2 | 380 | 247.6 | M24 |
